Atlas Copco 250cfm 7Bar Diesel Air Compressor U250

Home Atlas copco compressor Atlas Copco 250cfm 7Bar Diesel Air Compressor U250

Atlas Copco 250cfm 7Bar Diesel Air Compressor U250

Working Pressure:7Bar

Air Free Delivery:250cfm/min(7.1m3/min)

Engine:47.9Kw Kubota engine

Atlas copco compressor, Portable air compressor, Featured Products2026-07-25zhi

Description

The Utility range

The dictionary defines the word utility as the state of being useful, profitable or beneficial – the Utility
range combines all three benefits inside a lightweight, compact package. Its small footprint and single
side service make it perfect to integrate on a utility truck. A high efficient source of compressed air, no
matter where you are.

The Utility range offers models with our revolutionary PACE system. PACE enables you to control the
pressure to regulate the flow – giving you even more versatility to handle the several applications with
just one compressor. Several models also offer integrated generators.

The single side service allows for easy servicing, which can be completed within the hour. All models come with a corrosion free C3 rated canopy, to guarantee higher lifetime of the machine.

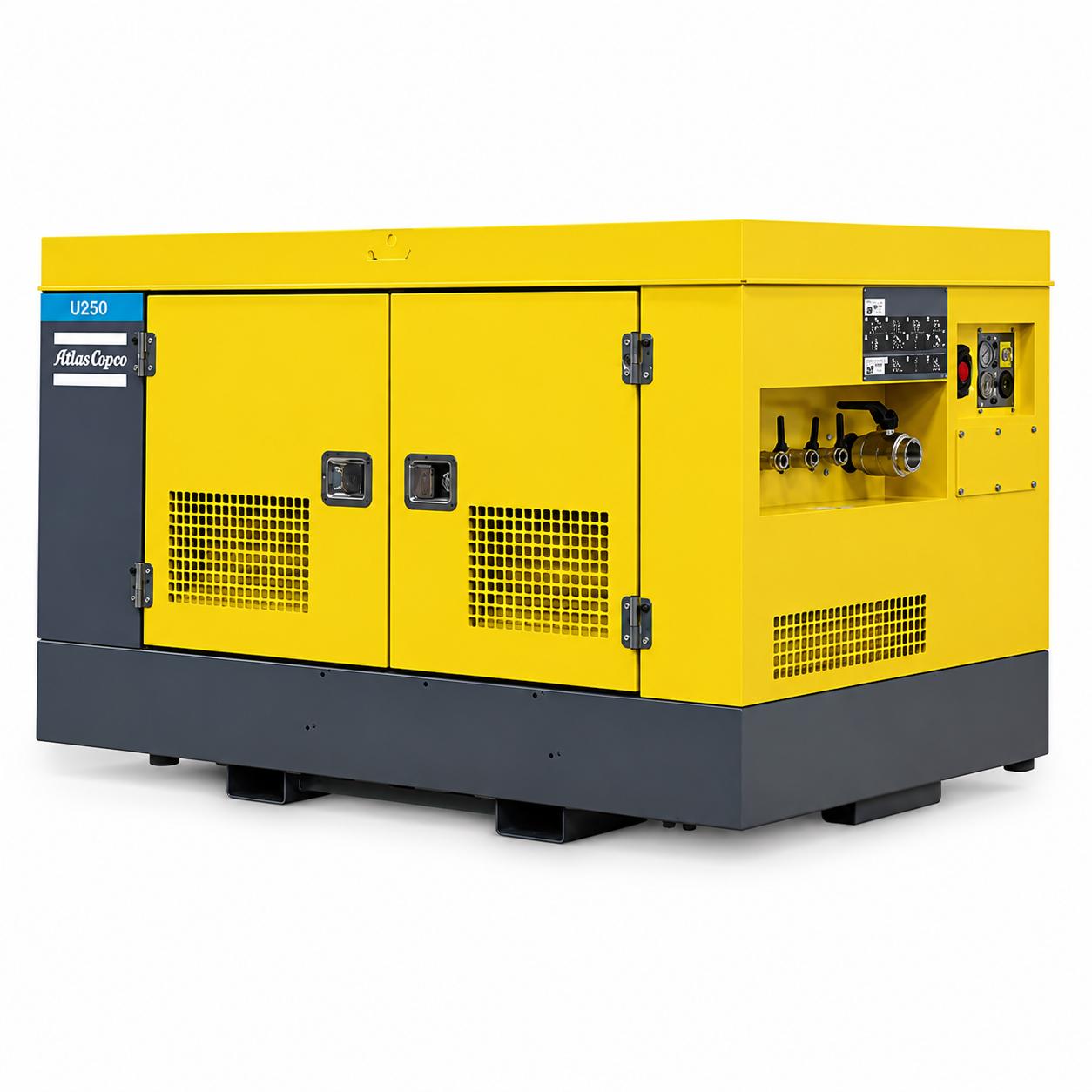

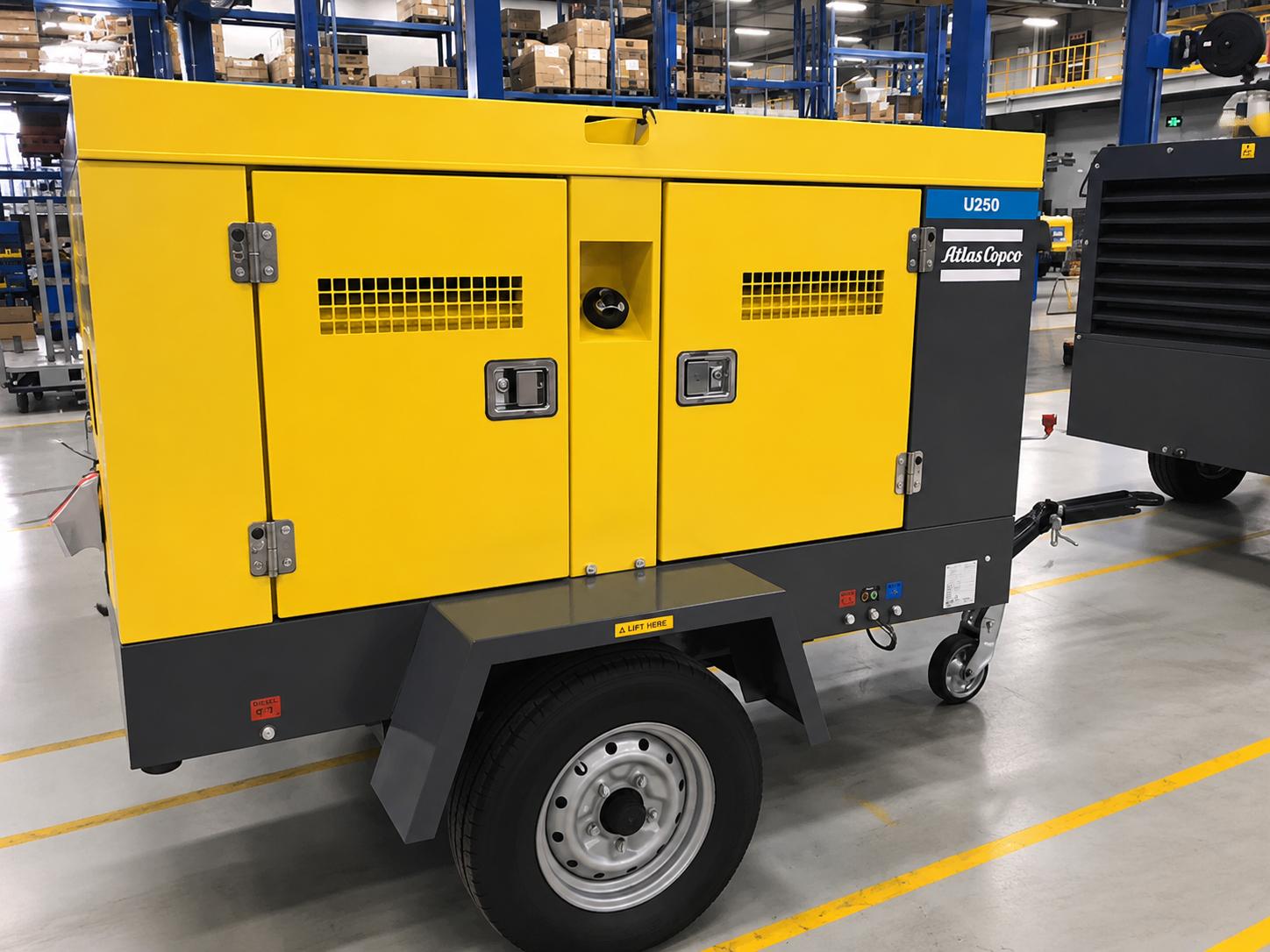

Atlas Copco Diesel air compressor U250
Compressor Data U250
Free Air Delivery @ Normal Working Pressure 7.1m³/min (250CFM)
Normal Working Pressure 7bar (100psig)
Diesel Engine Data Kubota  V2403T
Number of cylinders 4
Output at Rated Speed 47.9 kW
Full load RPM 2700 rpm
Unload RPM 1600 rpm
Engine oil 9.5 L
Cooling system 11.5L
Compressor oil 11L
Fuel Tank Capacity 100 L
Noise 80dB(A)
Dimension
Box Frame/weight 2050x1200x1230 mm /1200kgs

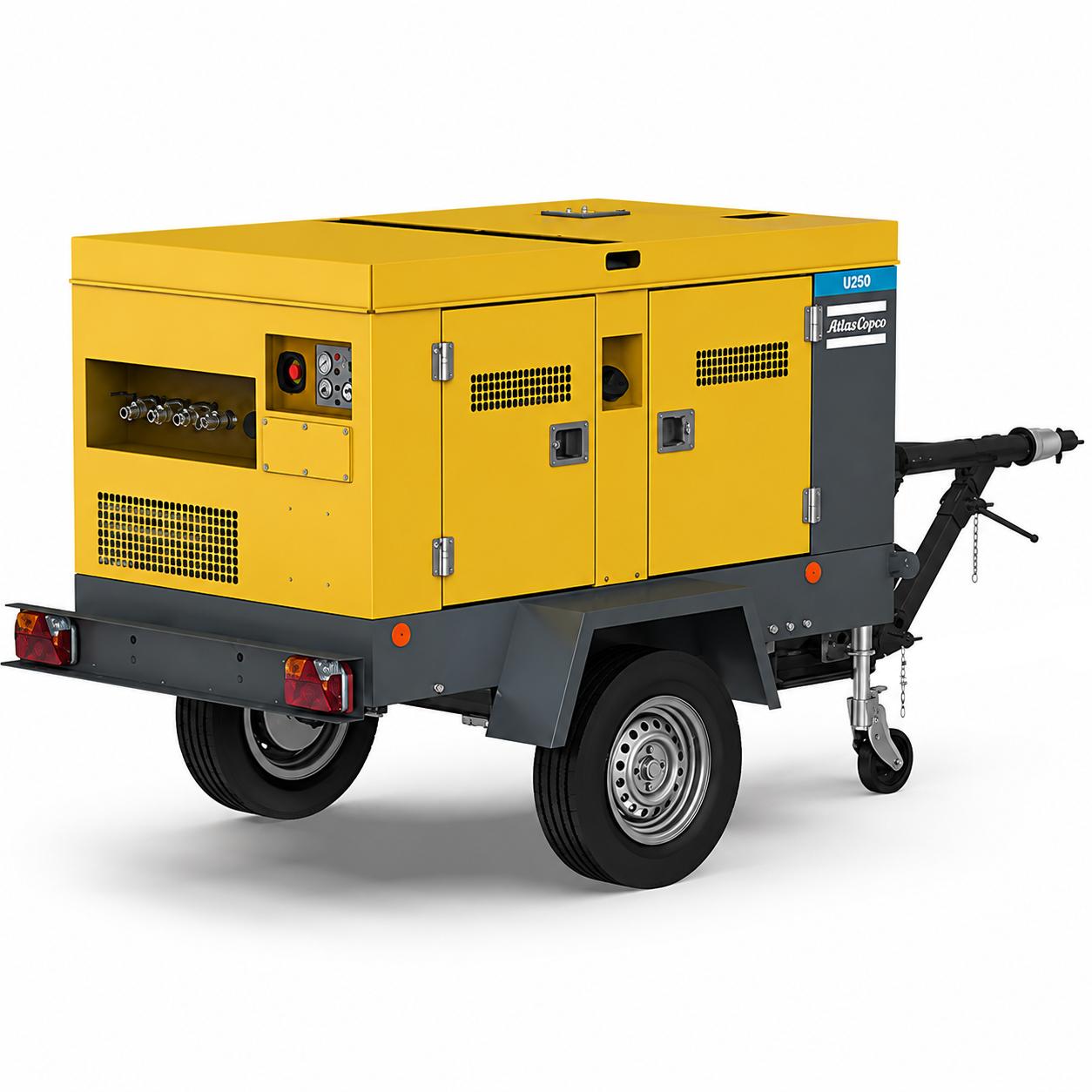

Trailer/weight 3380x1700x1676 mm /1500kgs
