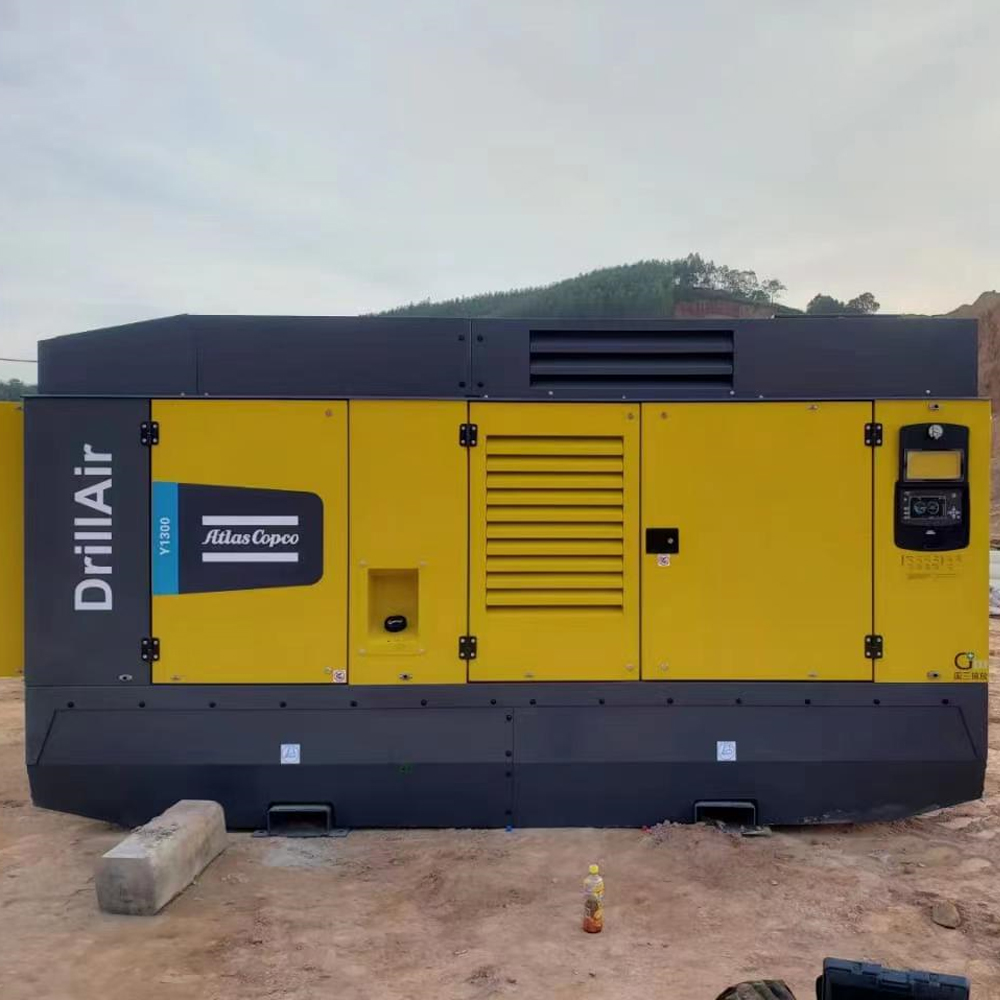

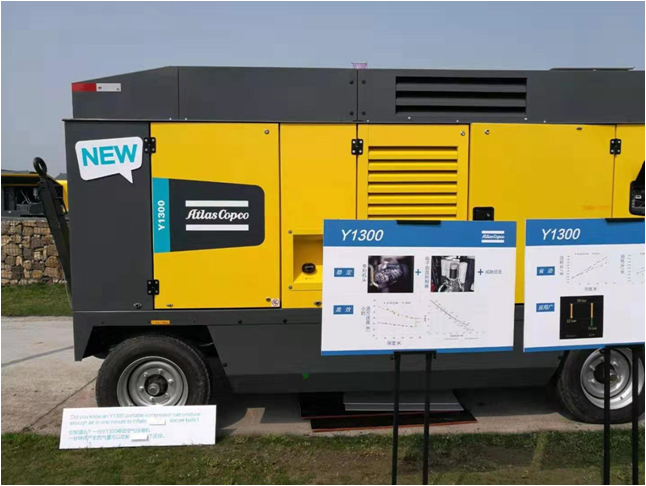

1142cfm/1214cfm 35 bar/25 Bar Atlas copco compressor
Atlas Copco is a leading manufacturer of compressed air machines in the world
Advanced technology
Reliable quality
Good after service
Description
| Compressor Data | XRYS1150Cd |
| Free Air Delivery @ Normal Working Pressure | 32 m³/min（1142cfm）/34m³/min（1214cfm) |
| Normal Working Pressure | 35 bar/25 Bar |
| Minimum / Maximum Unloading Pressure | 22 / 37 bar |
| Unloaded Speed / Maximum Loaded Speed | 1300 / 1800 rpm |
| Fuel Consumption @ 75% Load / 100% Load | 64.9 / 81.1 kg/h |
| Air Receiver Capacity | 143 L |
| Fuel Tank Capacity | 975 L |
| Screw Oil Capacity | 82 L |
| Approximate Air Outlet Temperature | 100° C (Standard) |
| Outlet Temperature within Aftercooler | 35° C (Standard) |
| Typical oil content of compressed air | <3ppm / 0.01ppm (with assist) |
| Sound Pressure Level (ISO2125) | 76 dB(A) |
| Outlet Valve Configuration | 1 x 2” G |
| Nominal working condition | Inlet pressure 1bar, Humidity 0%, Temp 20 ° C |
| Maximum Ambient Temperature at sea level | 50 ° C / 45 ° C (with assist) |
| Maximum Altitude | 3000 m |
| Minimum Starting Temperature | -10 ° C / -25 ° C (with assist) |
| Diesel Engine Data | C15 T3 |
| Horsepower Developed @ Rated Speed | 403 kW |
| Cylinders | 6 |
| Cooling System | Coolant liquid |
| Engine Coolant Capacity | 52 L |
| Engine Oil Capacity | 58 L |
| Load Factor | 100% |
| Dimensions | Standard Towing Speed 20 km/h |
| Length | 4910 mm |
| Width | 2100 mm |
| Height | 2460 mm |
| Weight ( filled with oil & coolant , Initial fuel ) | 6650 kg |
