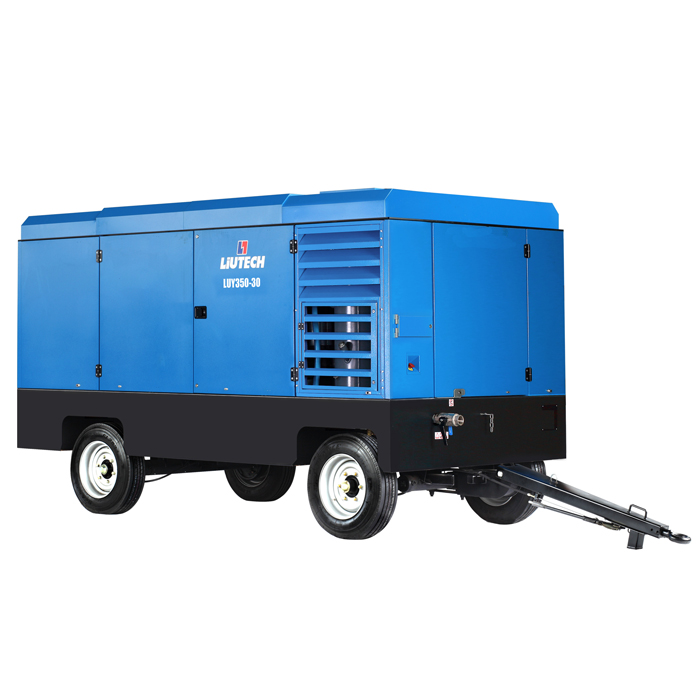

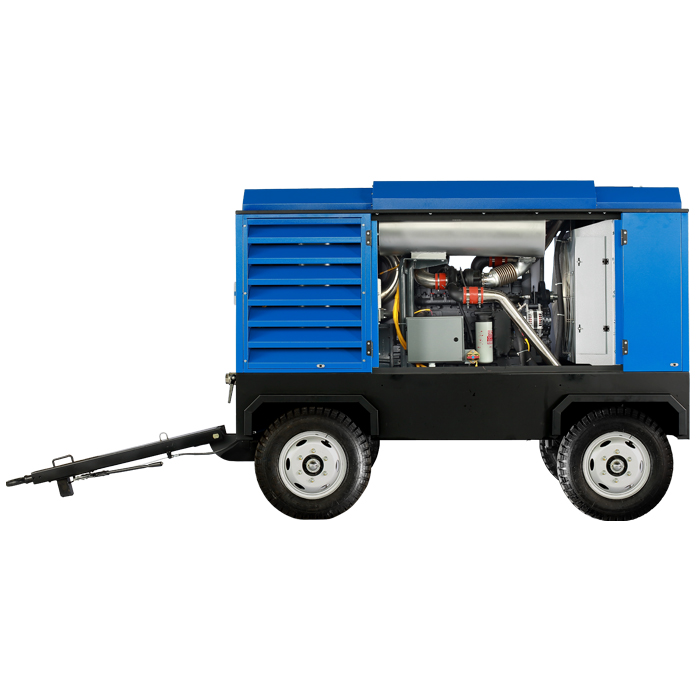

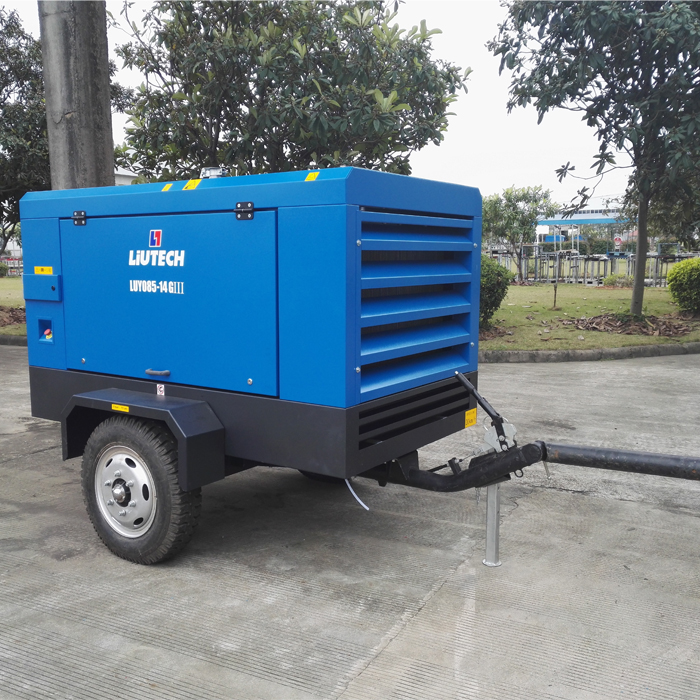

Diesel driven portable air compressor
Liutech have a complete range of screw air compressors
Description
LATEST ATLAS COPCO AIR END TECHNOLOGY
Asymmetric rotors allow for increased efficiency. In addition, a low rotor speed and few moving parts minimize wear and tear for reliable performance and long service life.
REPUTABLE ENGINE BRANDS
Every model has a powerful engine from a well-known and respected brand under its solid, weatherproof hood
LARGE COOLING SURFACE
Allows optimal use in high-temperature environments
EFFICIENT FUEL FILTER
High-efficiency multi-step fuel filtration with water separator isolates and traps contaminants
CLEAN INTAKE AIR
A high performance two-stage air intake filter prevents dust and dirt particles from entering the compressor and engine. A service indicator on the filter tells you when it needs replacement.
FULLY AUTOMATIC STEP-LESS SPEED REGULATOR
AC designed controller and regulation valves can control the engine speed to meet customer’s need, also keep fuel consumption low
| Model | Capacity (m3/min) |
Pressure (Bar) |
Engine | Power (Kw) |
Weight (Kg) |
Dimension (mm) | Description |
| LUY050-7 | 5 | 7 | Kubota | 32.5 | 750 | 2930x1320x1420 | 2wheels with cover
|
| LUY079-7 | 7.9 | 7 | Cummins | 60 | 1500 | 3651x1790x1908 | |
| LUY120-7 | 12 | 7 | YuChai | 96 | 1800 | 3950x2100x2210 | |
| LUY100-10 | 10 | 10 | |||||
| LUY100-12 | 10 | 12 | |||||
| LUY085-14 | 8.5 | 14 | |||||
| LUY120-7 | 12 | 7 | Cummins | 93 | 1680 | 3651x1790x1908 | |
| LUY100-10 | 10 | 10 | |||||
| LUY100-12 | 10 | 12 | |||||
| LUY085-14 | 8.5 | 14 | |||||
| LUY108-7 | 10.8 | 7 | |||||
| LUY140-14 | 14 | 14 | YuChai
|
129 | 2250 | 4190x1950x1980
|
|
| LUY150-15 | 15 | 15 | 151 | ||||
| LUY160-17 | 16 | 17 | 176
|
||||
| LUY200-10 | 20 – 16 | 10 – 17 | 2685
|
||||
| LUY220-8 | 22 – 20 | 8 – 10 | |||||
| LUY180-19 | 18 | 19 | 191 | 3330 | 4341x1950x2270 | ||
| LUY310-25 | 28 – 31 | 25 – 18 | 295 | 5150 | 5260x2040x2630 | 4wheels with cover | |
| LUY390-25 | 35 – 39 | 25 – 15 | 375 | 5270 | 5590x2100x2660 | ||
| LUY390-30 | 35 – 39 | 30 – 20 | 410 | ||||
| LUY160-17 | 16 | 17 | Cummins | 179 | 3855 | 4550x1770x2230 | 4wheels with cover |
| LUY170-15 | 17 | 15 | |||||
| LUY184-12 | 18.4 | 12 | |||||
| LUY202-10 | 20.2 | 10 | |||||
| LUY214-9 | 21.4 | 9 | |||||
| LUY239-7 | 23.9 | 7 | |||||
| LUY180-20 | 18 | 20 | 194 | 4120 | 4550x1770x2230 | ||
| LUY190-19 | 19 | 19 | |||||
| LUY270-10 | 27 | 10 | 242 | 4835 | 5260x1800x2631 | ||
| LUY230-14 | 23 | 14 | |||||
| LUY250-12 | 25 | 12 | |||||
| LUY215-21 | 21.5 | 21 | 4850 | 5260x2040x2631 | |||
| LUY400-25 | 35 – 40 | 25 – 15 | 372 | 5750 | 6120x2100x2570 | ||
| LUY400-30 | 35 – 40 | 30 – 20 | 410 |
