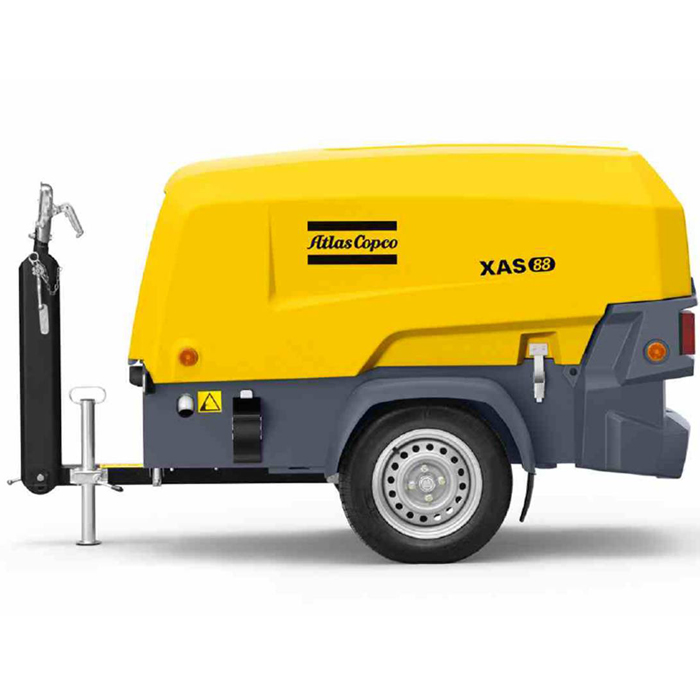

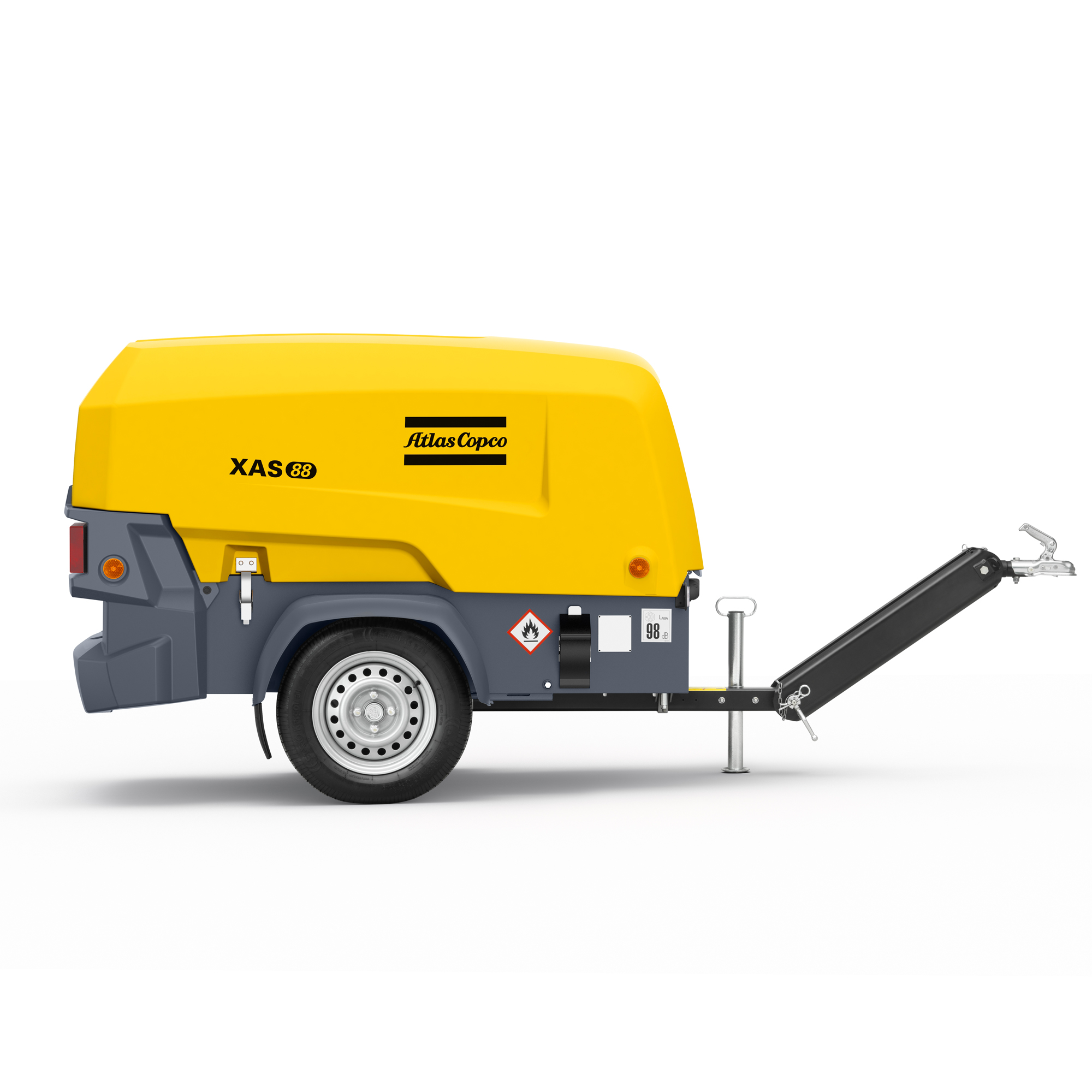

180cfm 7Bar Atlas copco Diesel air compressor
Atlas copco compressor is famous in the world
Good quality!
High efficiency！
After service station in every country
Description
| Compressor Data | XAS88 Kd |
| Free Air Delivery @ Normal Working Pressure | (5 m³/min ) 180cfm |
| Normal Working Pressure | 7 bar 102psi |
| Minimum / Maximum Unloading Pressure | 4 / 8.5 bar |
| Compression Stages | 1 |
| Compressor cooling system | Compressor oil |
| Compressor Oil Capacity | 7.7 L |
| Approximate Air Outlet Temperature | 90°C (Standard) |
| Typical oil content of compressed air | <5 mg/m³ |
| Fuel Tank Capacity | 60L |
| Outlet Valve Configuration | 3 x 3/4” G |
| Nominal working condition | Inlet pressure 1bar,Humidity0%,Temp20 °C |
| Sound Pressure Level (ISO2125) | 70 dB(A) +/- 3 |
| Maximum Ambient Temperature at sea level | 50 °C |
| Maximum Altitude | 5000 m |
| Minimum Starting Temperature | -10 °C / -20 °C (with assist) |
| Diesel Engine Data | Kubota |
| Horsepower Developed @ Rated Speed | 33kW |
| Engine cooling system | Water |
| Cylinders | 4 |
| Engine Oil Capacity | 5.5 Liter |
| Unloaded Speed / Maximum Loaded Speed | 1850 / 3000RPM |
| Fuel Consumption @ 0% Load / 100% Load | 3.6 / 7kg/h |
| Dimensions | Standard Towing Speed20 km/h |
| Length | 2290 mm ( within towbar ) |
| Width | 1350 mm |
| Height | 1400 mm |
| Weight ( filled with oil & coolant , Initial fuel ) | 750 kg |
